Item # CV18C

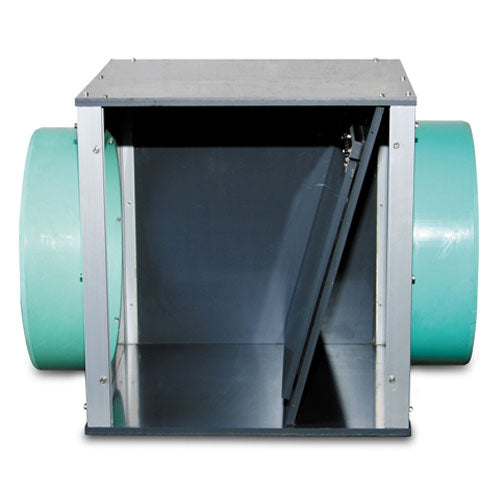

18" PVC Check Valve with Clean Out | Agri Drain

Get unique in-ground, in-line backwater protection for tile drainage systems and commercial applications with this 18" PVC Check Valve with Clean Out. It uses a rugged 1/2"-thick PVC body, SDR35 PVC stubs, and a threaded cleanout for easier inspection and maintenance.
$1,121.67
Shipping calculated at checkout.
Request a quote
Talk to an expert
Buy America - Build America
Made in the USA

Product Specs

Unique in-ground, in-line backwater protection for tile drainage systems and a variety of commercial applications.

• Body constructed of rugged, 1/2"-thick PVC with SDR35 PVC stubs

• Available with a 6" SDR35 PVC clean out

• Stainless steel screws and custom anodized aluminum corner extrusions used for strength and durability

• Flexible couplers are required for the inlet and outlet stubs; installation without them will void the warranty. Flex couplers are sold separately and allow for minor movement due to settling, reducing stress on the valve and piping.

• Check valve must be installed on a stable base capable of supporting the valve, stubs, and attached pipe

• Stubs are 4" in length

• Overall length: 31.25"

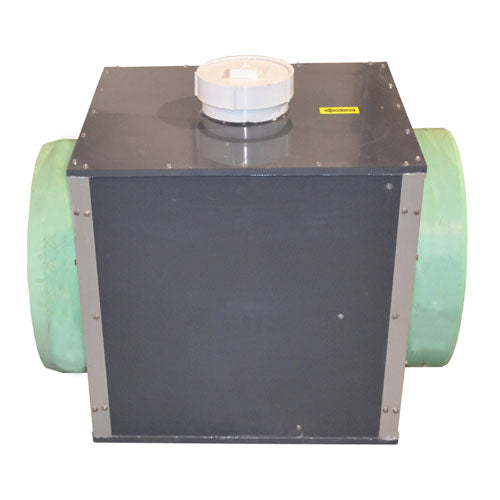

• Clean out with threaded plug allows easy maintenance and inspection

• Full flow for drainage

• Valve is not pressure rated

• Valve is intended for gravity flow: low pressure and some seepage will occur

Downloadable Files
Check Valve Spec Sheet
