7" Tall x 13 3/4" Wide BOTTOM Stoplog

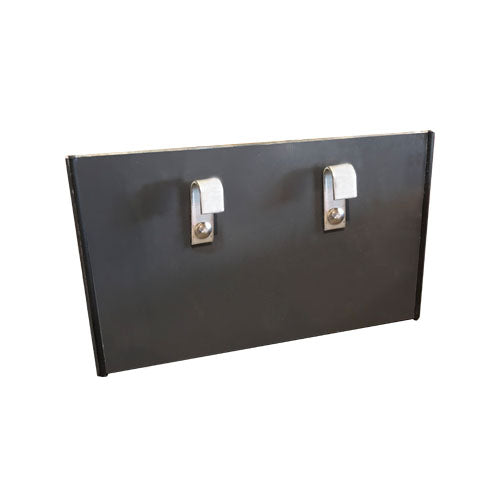

PVC Stoplog for Inline Water Level Control Structures™. Durable and easy to install, it provides consistent water control and dependable performance. Built to withstand demanding conditions, this stoplog offers reliable operation and effective water management across a wide range of applications.

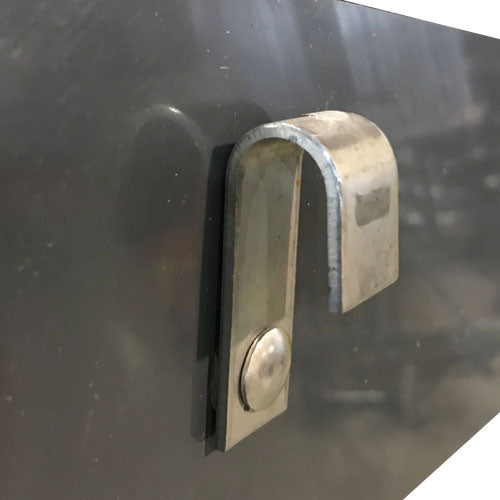

• PVC Bottom stoplog with stainless steel hooks for strength and durability.
• Bottom-most stoplog is labeled with a sticker and must be installed first in track along very bottom of structure. This stoplog has a thicker o-ring along very bottom of stoplog.
• Stoplog measures 7" tall x 13 3/4" wide.
• For standard Inline-style structures with inside dimensions of 14" wide x 16" depth. For custom structures, confirm width prior to ordering.
• Stoplog board is installed in the track of the structure with lifting hooks facing the downstream/outlet side of the structure.
• Maintenance recommended: Remove stoplogs and grease seal with white lithium grease. Ensure there is no debris in the tracks or along the bottom of the structure. Replace stoplogs after greasing, ensuring bottom stoplog is installed first..
• Important! To minimize seepage, align stoplogs firmly against one side of the stoplog track.
• Stoplog must remain in track during structure installation.
• Replacement o-ring available.
• Custom sizes available, call for more details.
