Item # INLET02X04P

Inlet Water Level Control Structures™

$410.46
Request a quote
Talk to an expert

Product Specs

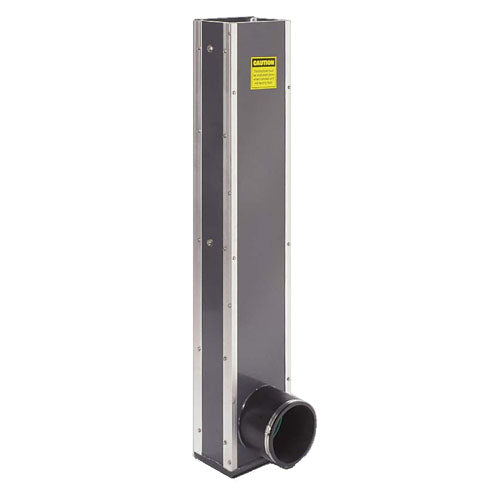

Inlet Water Level Control Structures™ effectively manage surface water levels in wetlands, ponds, and other areas by adjusting stoplogs to your desired height. The structure is built of rugged ½" PVC with anodized aluminum corner extrusions and stainless steel screws. Flexible coupler allows many types of pipe to attach on the outlet side.

  • Structures are constructed of rugged ½" PVC, stainless steel screws and custom anodized aluminum corner extrusions which provide strength and durability*.

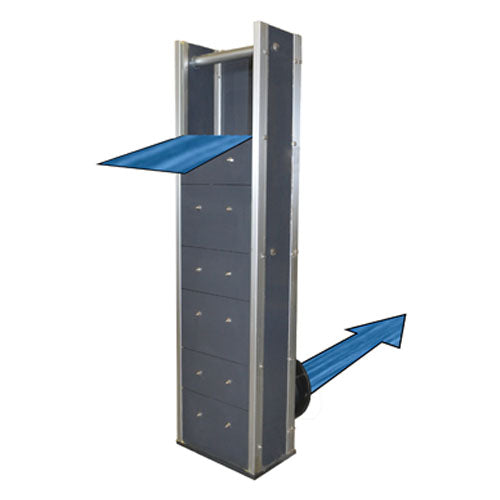

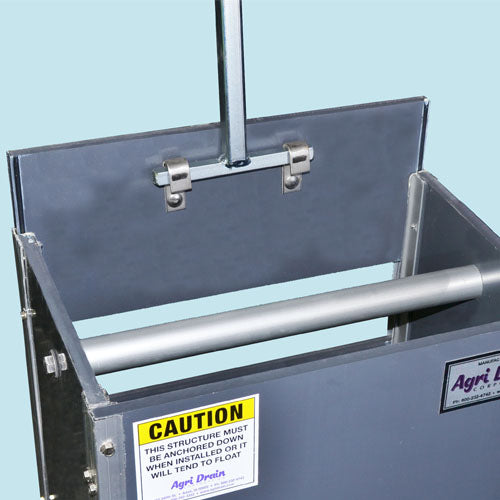

  • Stoplogs are used for adjusting surface water levels and come pre-installed in 5" and 7" heights with lifting hooks facing the downstream/outlet side. The handle (included) is used to easily add, remove, or adjust stoplogs.
  • Stoplog maintenance: Remove stoplogs, grease seals with Ultra Lube (included), clear debris from tracks and bottom, then replace stoplogs. Align stoplogs firmly against one side of the track to minimize seepage. Stoplogs must remain in the track during structure installation.
  • Structures are designed for gravity flow; some seepage may occur.
  • 5-year warranty on all standard structures.

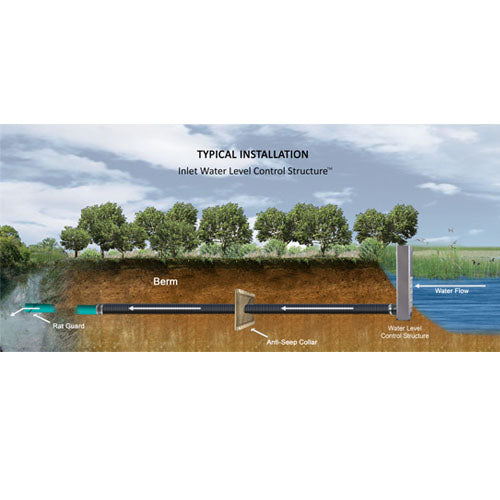

Note: Structure must be anchored down when installed. See anchoring recommendations.

*For water that is caustic, acid, corrosive, salt, or pH below 5 pH or above 9 pH, please notify us of your requirements to ensure structures are built with compatible hardware. For these applications, Agri Drain recommends stainless steel.

Downloadable Files
Installation Instructions
Recommended Anchoring
Inlet Water Level Control Structure™ Spec Sheet
Water Level Control Structures Spec Sheet
Inlet Water Level Control Structure™ Box Dimensions
Inlet Water Level Control Structure™ Couplers
