PVC Stoplogs for Inlet Structures

Price: Call For Pricing

Call to Order: (800) 232-4742

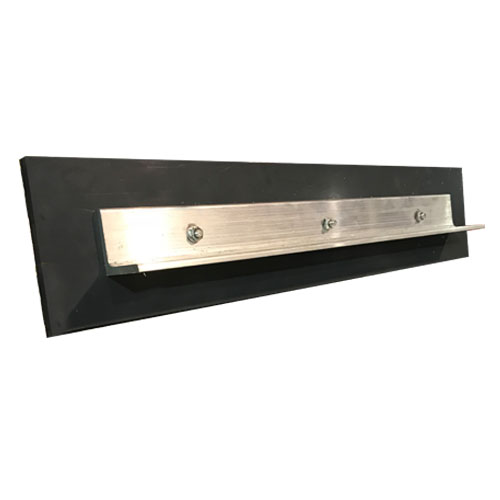

PVC stoplogs with stainless steel hooks for Inlet Water Level Control Structures™.

See "Pricing" tab below. Table reflects List pricing.

Stainless steel hooks for strength and durability.
Come in either 5" or 7" tall with o-ring.
Stoplog boards are installed in the track of the structure with lifting hooks facing the downstream/outlet side of the structure.
Maintenance recommended: Remove stoplogs and grease seal with white lithium grease. Ensure there is no debris in the tracks or along the bottom of the structure. Replace stoplogs after greasing, ensuring bottom stoplog is installed first.
Important! To minimize seepage, align stoplogs firmly against one side of the stoplog track.
Stoplogs must remain in track during structure installation.
Replacing The O-Ring On A PVC Stoplog.

Table Reflects List Pricing

Pipe Size	Short (5" Tall)	Tall (7" Tall)	Current Width	2005-5/2015 Width	2005 & Older Width
4"/6"	$15.61	$16.47	11 1/4"	8 7/8"	8 7/8"
8"	$17.76	$21.42	11 1/4"	11 3/4"	12 7/8"
10"	$21.56	$24.41	13 3/4"	13 3/4"	14 7/8"
12"	$26.04	$29.71	15 3/4"	15 3/4"	16 7/8"
15"	$41.08	$46.59	19 3/4"	19 3/4"	20 7/8"
18"	$48.20	$55.82	23 3/4"	23 3/4"	24 7/8"
24"	$61.19	$71.29	30 3/4"	30 3/4"	31 7/8"
